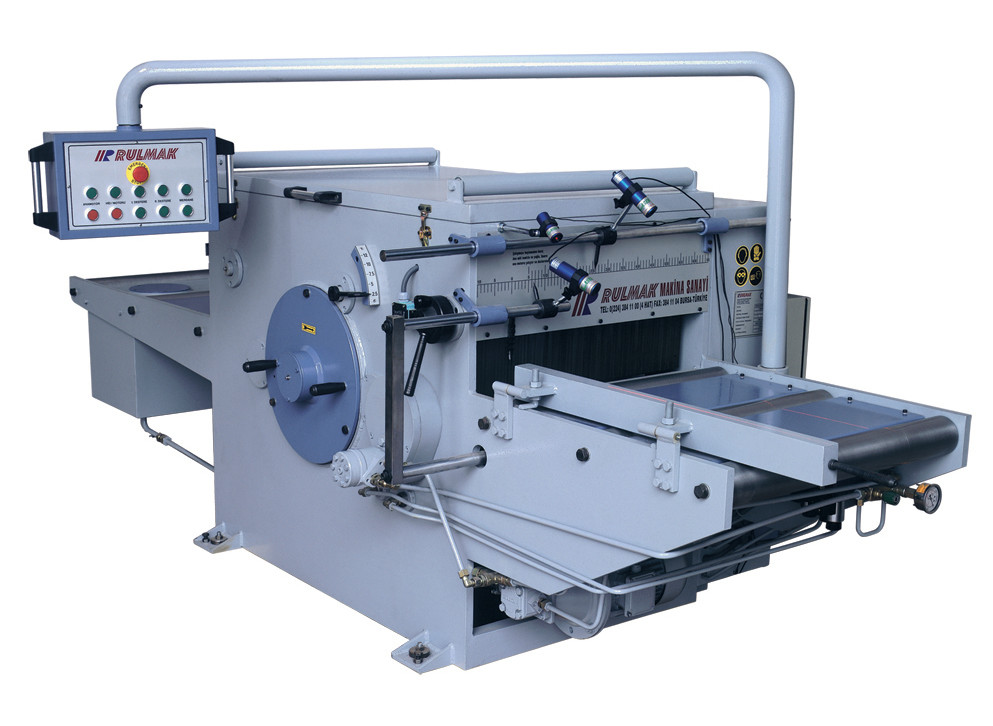

RM.SY
| RM.SY Technical Information | |
| Circular Saw Diameter (mm) | 300 |
| Cutting Height, (mm) | 80 |
| Maximum Cutting Width (mm) | 800 |
| Circular Saw Cycles, rpm./min. | 2800 |
| Maximum Board Feed Width (mm) | 900 |
| Number of Pluggable Saws | 7 |
| Main Shaft Diameter (mm) | 75 |
| Cutting Speed, mt./min. | 0 – 30 |
| Main Motor Power, kW/rpm/min. | 11/3000 |
| Machine Dimensions (Length x Width x Height), (mm) | 3300/1300/1400 |
| Approx. Weight, kg | 1250 |
Technical Details
Maximum cutting quality.
Simple installation advantage
Compact design
Upper and lower guards ensure operational safety
Hydraulic pressure, independent, and movable roller operating system
Slicing with up to 15 blades, blade spaces optional. (Optional)
